BAKU FAÇADE RIBBONS

This arena’s ribbon façade invokes a gymnast’s twirling ribbon.

Client: Pasha Insaat, Baku, Azerbaijan
Location: Baku, Azerbaijan
Completed: 2013
Architect: Broadway Malyan Limited, London, Great Britain
Engineer: IF-Group
Membrane Area: 7,700 m²
Membrane Material: 1002 S2 PVC Coated Polyester

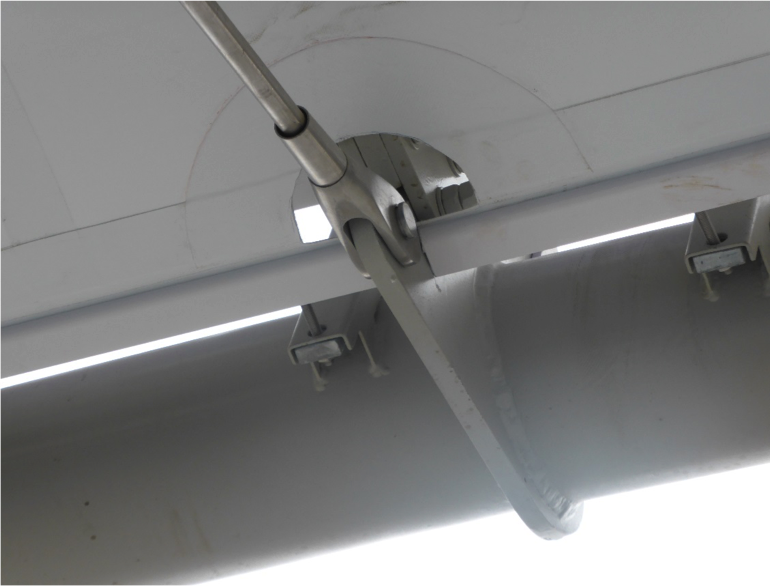

Scope of Work: Geometry Optimization, FEA, Connector Fabrication, Installation Oversight





As host of the 2015 European Games, the city of Baku wanted an arena that was visually arresting and represented the cultural importance of gymnastics in Azerbaijan. Tensile Evolution’s Horst Dürr* was tasked with designing a façade that fit the project’s aspiration for a modern, dynamic visual element and represented the sport of gymnastics.

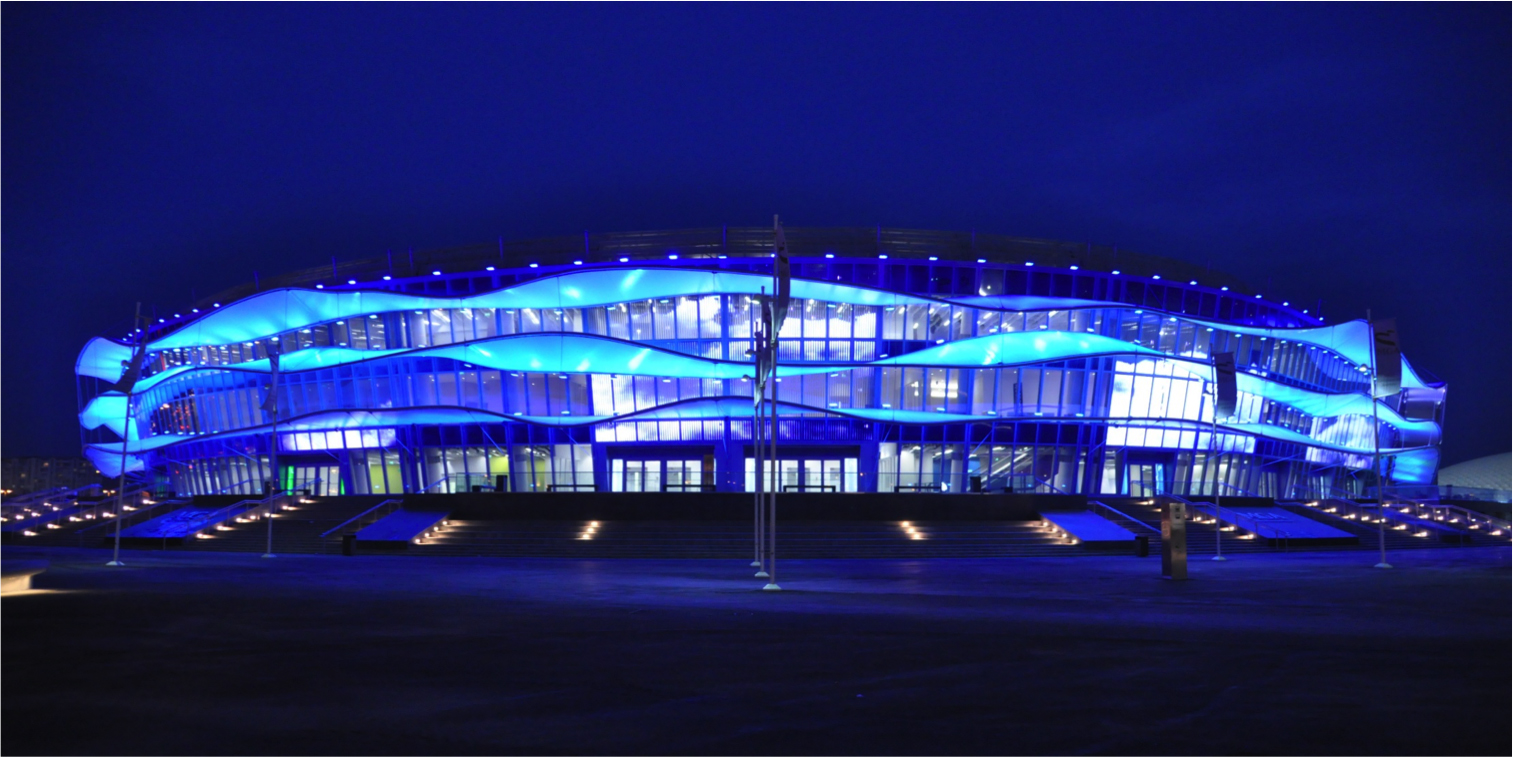

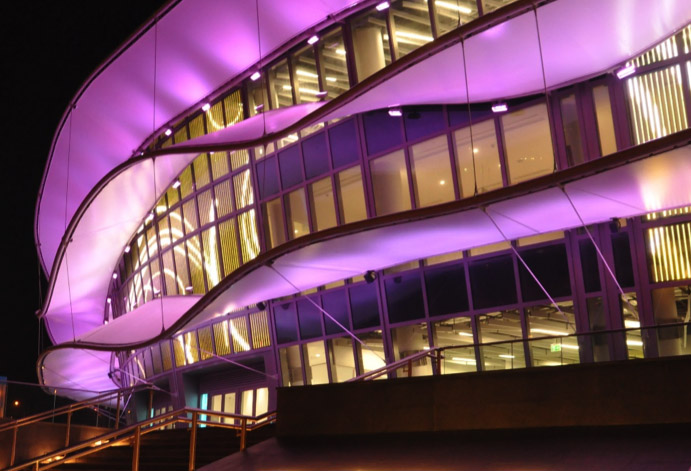

The solution was to create undulating ribbons that circumscribe the stadium, and the result indeed resembles a ribbon twirling around a gymnast. The need for flat membranes with a consistent width yet randomized undulation required a multi-discipline approach, resulting in an elegant solution that our clients and the community are proud of.

*Previously of IF-Group
